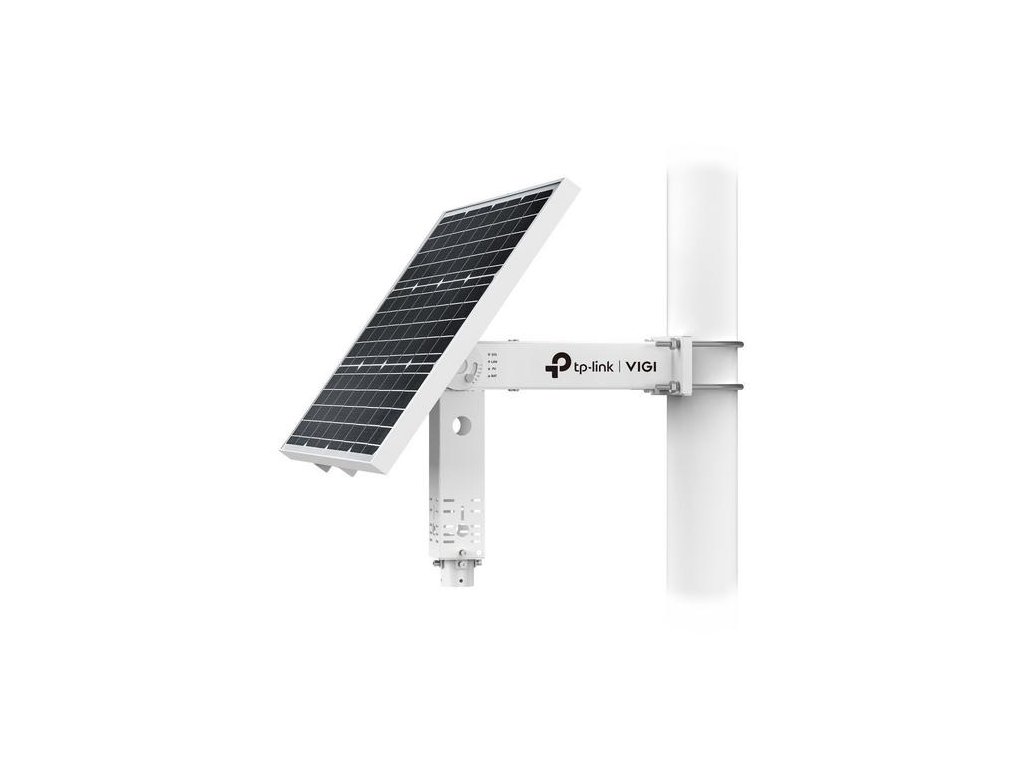

TP-LINK VIGI SP9030 90W (solární panel)

Detailní popis produktu

VIGI SP9030 New
VIGI Inteligentní solární systém
90W fotovoltaický panel a 31.2Ah/10,8V lithium baterie
3× DC výstupní porty
Modulární design
Nastavitelné úhly: 5° / 15° / 25° / 35° / 45° / 55°
Inteligentní technologie pomocného ohřevu
Regulátor nabíjení s technologií MPPT (Maximum Power Point Tracking)
Odolnost proti povětrnostním vlivům IP66
Vzdálená správa a jednoduchá instalace

Solar Panel (Photovoltaic Panel)
Power 90 W
Voltage 18 V
Dimensions (L x W x H) 998×516×30 mm (39.3×20.3×1.2 in)
Battery
Type Lithium
Intelligent Auxiliary Heat Yes
Battery Capacity 31.2 Ah
Voltage 10.8 V
Max. Output Voltage 12.6 V
Life More than 500 cycles*
Dimension 242×70×65 mm (9.5×2.8×2.6 in)
Charging Condition • 0°C~45°C
• -30°C~45°C (With intelligent auxiliary heating)
Discharging Condition • -20°C~60°C
• -30°C~60°C (With intelligent auxiliary heating)
Angle Adjustment (Manual)
Range 5°/15°/25°/35°/45°/55°
HARDWARE
Interface • 1× 10/100 Mbps RJ45
• 1× Photovoltaic Panel Connector
• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
Indicator LED • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)
• Color: Blue
SOFTWARE FEATURES
Load Control Yes
High and Low Temperature Protection Yes
Overdischarge Protection Yes
Power Consumption Statistics Yes
Displays Real-time Load Status Yes
Battery Level Display Yes
Time Zone Selection Yes
Region Selection N/A
Schedule Saving Yes
Firmware Remote Update Yes
Remote Reboot Yes
Local LAN Management Yes
Intelligent Auxiliary Heating Control -30°C~5°C
Account Management Yes
Remote Reset Yes
Remote Message Push Yes
OTHERS
Certification • CB, PSE (Battery)
• CE, FCC, VCCI, IC, IP66
Package Content • VIGI SP9030
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Box Dimensions (W X D X H) 1110×615×225 mm (43.7×24.2×8.9 in)
Weight • Product Weight: 15 kg
• Package Weight: 17.5 kg
Environment • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating)
• Operating Humidity: 10%~90%RH, Non-condensing
Kód produktu: AGM87018
Part no.: VIGI SP9030
EAN: 4895252504897
