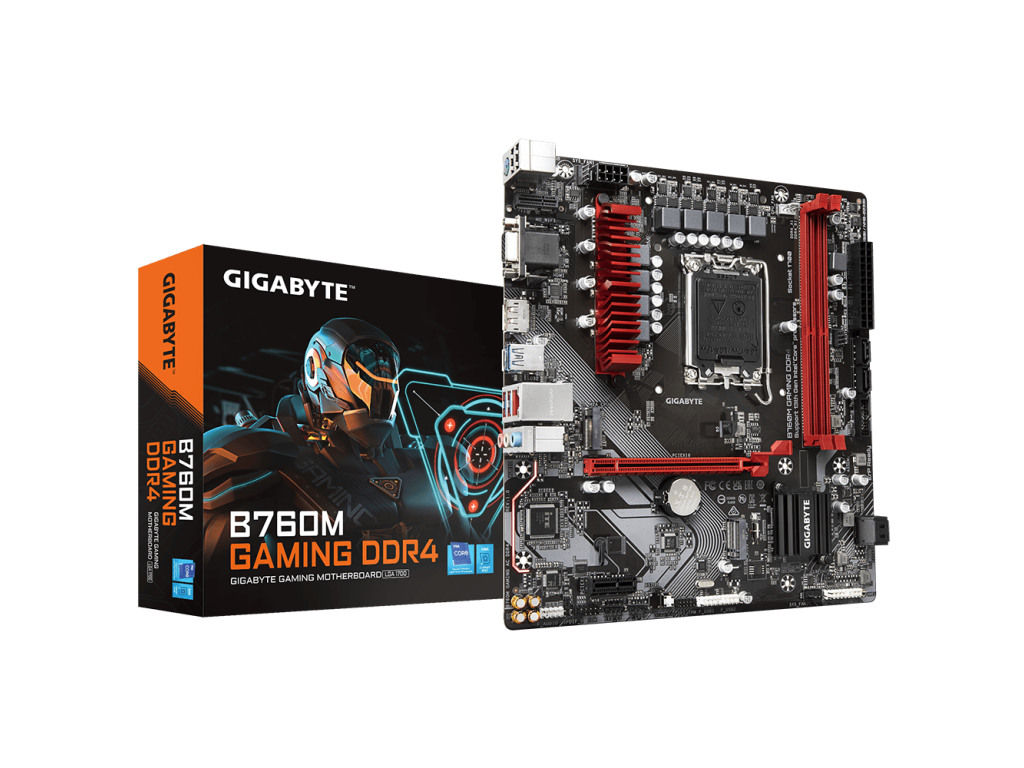

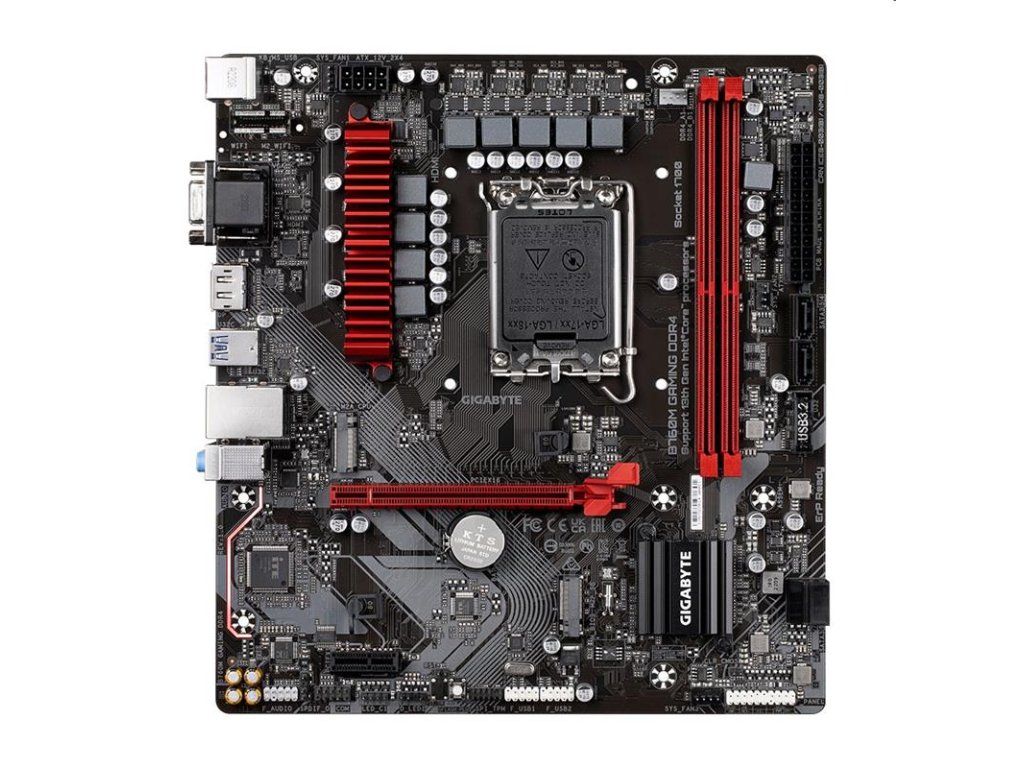

Gigabyte B760M Gaming DDR4, Intel B760, LGA1700, 2xddr4, Matx

Detailní popis produktu

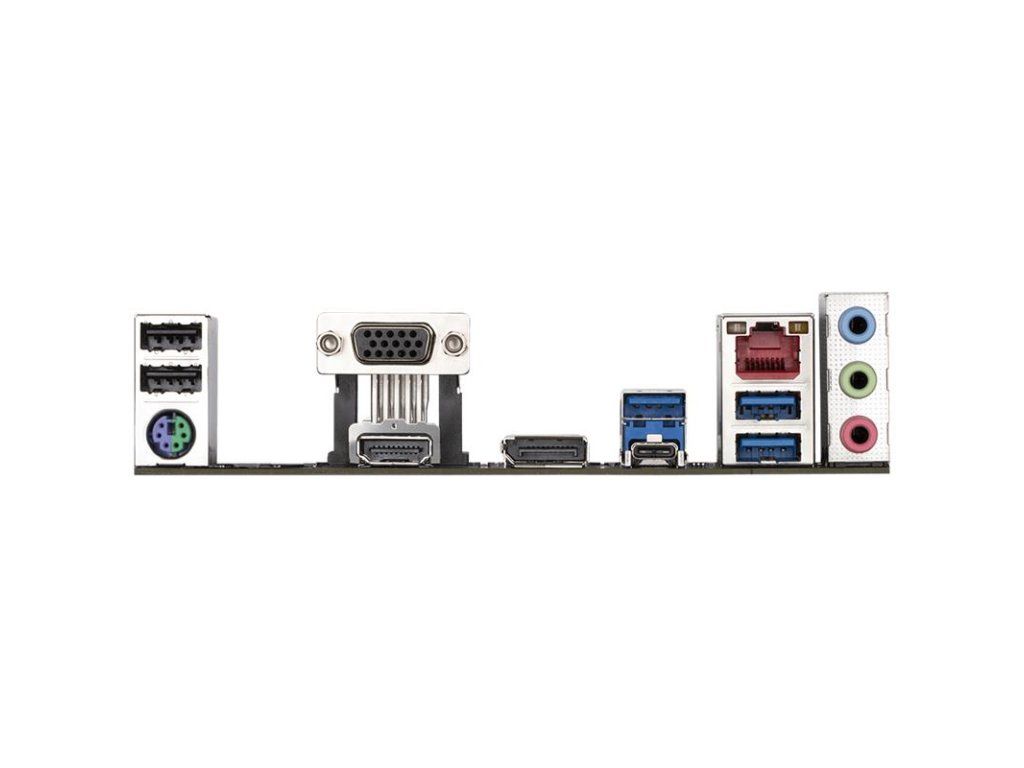

Supports Intel® Core™ 14/13/12 procesory Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution Dual Channel DDR4: 2*DIMM Slot s Quick Release Design Fast Networks: 2.5GbE LAN Extended Connectivity: Rear USB-C® 5Gb/s, DP, HDMI, D-Sub Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus:Update BIOS Při instalaci CPU, Memory and Graphics Card CPU LGA1700 socket: Support pro 14th, 13th, a 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache variace s CPU (Please refer "C7 Sup0 Express Chipset Memory Support for DDR4 5333(OC)/5133(OC)/5000(OC)/4933(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4300(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3666(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200/2 2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB jediné DIMM capacity) of system memory Dual channel memory architecture Support pro ECC Un-buffered DIMM 1Rx8/2Rx8 moduly modulů (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory moduly Support for Extreme Memory Profile podporované typy paměti, data rychlosti (speed), a počet modulů DRAM, odkazuje na "Memory Support List" na GIGABYTE's webové stránky pro více informací.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution 4096x2160@60 Hz * Support for HDMI 2. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximální resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications mají vary depending on CPU support.) Support for up to 3 displays at the time Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * Můžete změnit funkci audio jack pomocí audio softwaru. To configure 7.1-channel audio, přístup k audio software pro audio settings. Support for S/PDIF Out LAN Realtek® 2.5GbE LAN čip (2.5Gbps/1Gbps/100Mbps) Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 a running at x16 * Slot PCIEX16 může pouze podporovat grafické karty nebo NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 a běží na x1 Storage Interface CPU: 1 x M.2 konektor (Socket 3, M klíč, typ 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s konektory RAID 0, RAID 1, RAID 5, a RAID 10 support pro SATA storage devices USB Chipset: 1 x USB Type-C® port na zadním panelu, s USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 porty (3 porty na portu) 2 x USB 2.0/1.1 porty na zadním panelu Chipset+USB 2.0 Hubs: 4 x USB 2.0/1.1 porty dostupná prostřednictvím vnitřních USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip headers 1 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6G panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module hlava (pro GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 moduly pouze) 1 x řada port hlava 1 x Q-Flash Plus tlačítko 1 x reset jumper 1 x Clear CMOS jumper back. 1 x PS/2 klávesnice/mouse port 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, s USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detekce Temperature detekce Fan speed detection Water cooling flow rate detekce Fan fail warning Fan speed control BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support pro GIGABYTE Control Center (GCC). Supported functions each application má také vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Bundled Software Norton® Internet Security (OEM verze) LAN bandwidth management software Operating System Support for Windows 11 64bit Support for Windows 10 64bit Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
Kód produktu: ISTMBGGB760MGGDDR4
Part no.: B760M GAMING DDR4
EAN: 4719331851415
