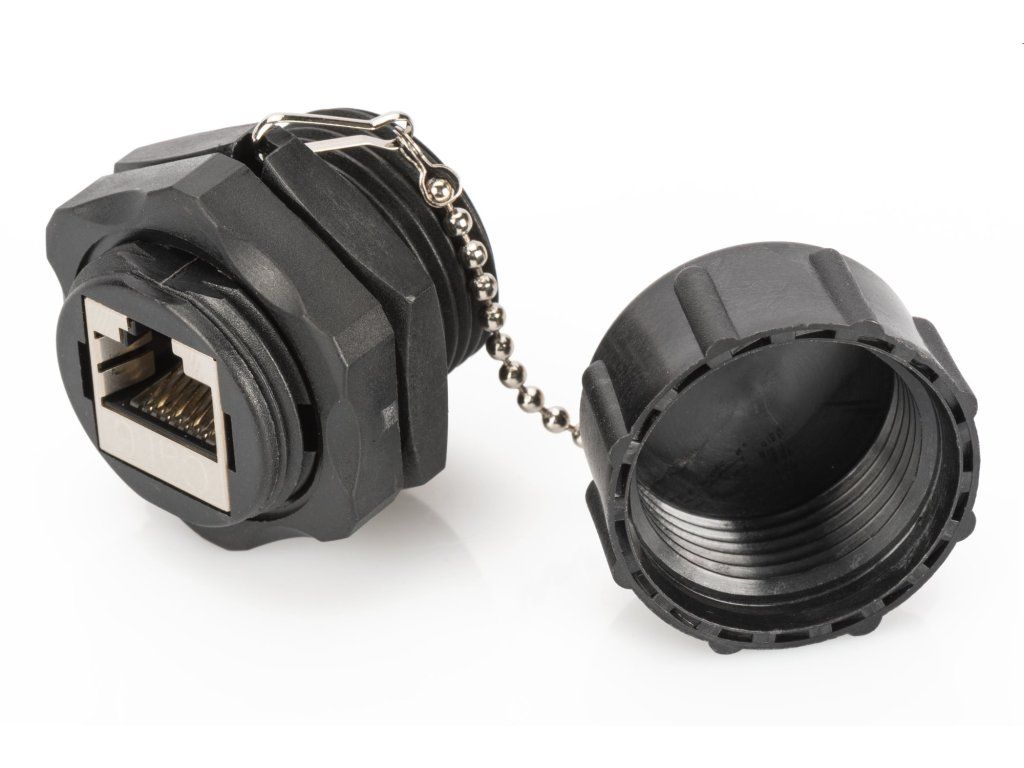

DIGITUS INDUSTRIAL spojka Cat6, stíněná STP, 2xRJ45, PoE/PoE+/4PPoE, IP67

Detailní popis produktu

CAT 6 STP průmyslový bulkhead coupler, IP67 s dust cap Best performance and link quality pro váš síť. Ideal for industrial applications. IP67 (dust tight; immersion, up to 1 m depth) inclu. detachable closing cap Supported: PoE/PoE+/4PPoE (IEEE802.3 af/at/bt) TECHNICAL DETAILS Hlavní body & dust čepice: PBT+GF, UL94V-0 Shielded case: Brass, nickel plated Coupler housing: ABS, UL94V-0 Module kontakty: Phosphor bronze, 50 µ gold plated Insertion life: 750 cyklů s FCC compliant 8P plug Contact force: 100 g s FCC compliant 8P plug Plug retention force: 11 LBF min. Operační temperature range:-10 °C až +60 °C Storage temperature range:-40 °C až +68 °C Humidity: 10%~90% RH Insulation resistance: 500 M? Dielectric withstanding voltage: 1000 V AC DC current rating: 1.5 Amps. DC resistance: 0.1 ? Contact resistance: 20m ?
Kód produktu: ISTNTDSDN-IND-C6-C
Part no.: DN-IND-C6-C
EAN: 4016032429623
